Concreting Mesh

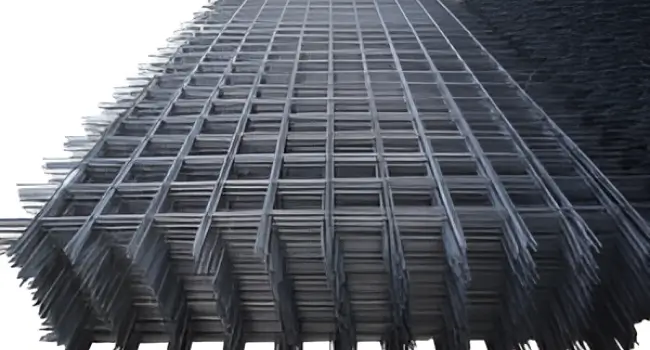

Concreting mesh steel is a high strength engineering weld mesh material. Harding Steel provides a steel concreting mesh to all of Brisbane north that is electronically welded at each intersection making it suitable for a wide range of building projects. It is very strong and very easy to work with, and as a result it is used to create a variety of safety guards and screens.

Concreting mesh is 3mm thick and has a number of uses including:
Fencing
Drain covers
Protective cages
Machine guards
Stairways and balustrading
Catwalks
Anti-burglary screens on windows
And many more.

It is available in two finishes; galvanised and self-colour. The galvanized offers greater rust protection, although it cannot be fabricated.

Concreting Mesh Brisbane

Code	Wire Thickness (mm)	Apertures (openings, mm)	Sheet size (mm x mm)	Weight (Kg)
SL52	4.75	200 x 200	6000 x 2400	22.7
SL62	6.0	200 x 200	6000 x 2400	31.7
SL72	6.75	200 x 200	6000 x 2400	40.8
SL82	7.6	200 x 200	6000 x 2400	52.3
SL92	8.55	200 x 200	6000 x 2400	65.5
SL102	9.5	200 x 200	6000 x 2400	80.2
SL81	7.6	100 x 100	6000 x 2400	105.0
